12s3p P42A Battery Pack | Transparent Series
🇺🇸 Assembled In The USA 🇺🇸

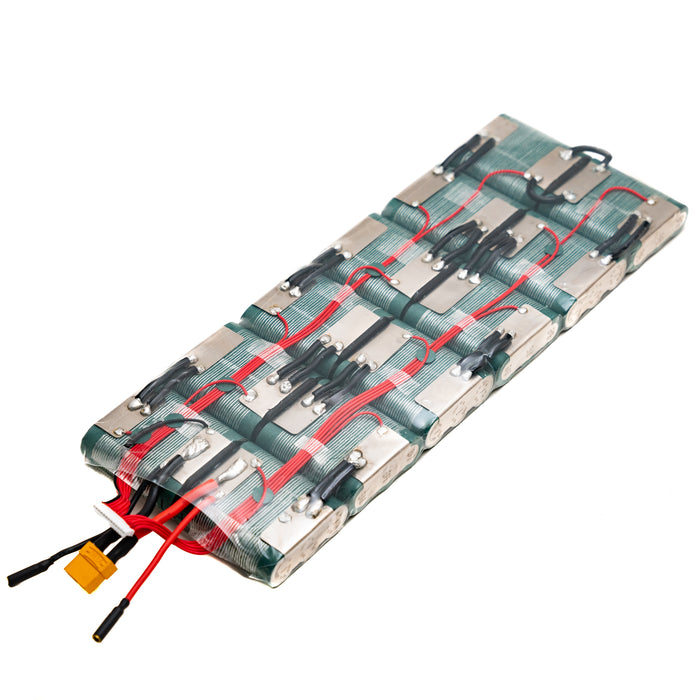

Introducing the MBoards 12s3p P42A Complete Battery Solution. This battery is a 12s3p lithium-ion battery made from 36 Grade-A 21700 Molicel P42A cells with a modular BMS (Battery Management System) that protects the battery pack and keeps it running safely when operating and charging. If you’re looking to build a super fast board, 12s batteries are the way to go.
Built In-House
We've finally brought battery pack assembly back under the MBoards roof. We've got more control than ever before. Now assembled here in Las Vegas, NV - USA.
Insane Power
The MBoards 12s3p P42A pack truly packs a punch delivering 135 amps.
Flexibility = Durability
Our Transparent Series batteries are made with flexible decks in mind. This battery pack is carefully welded onto a Flex tolerant PCB to maintain durability while standing on it.

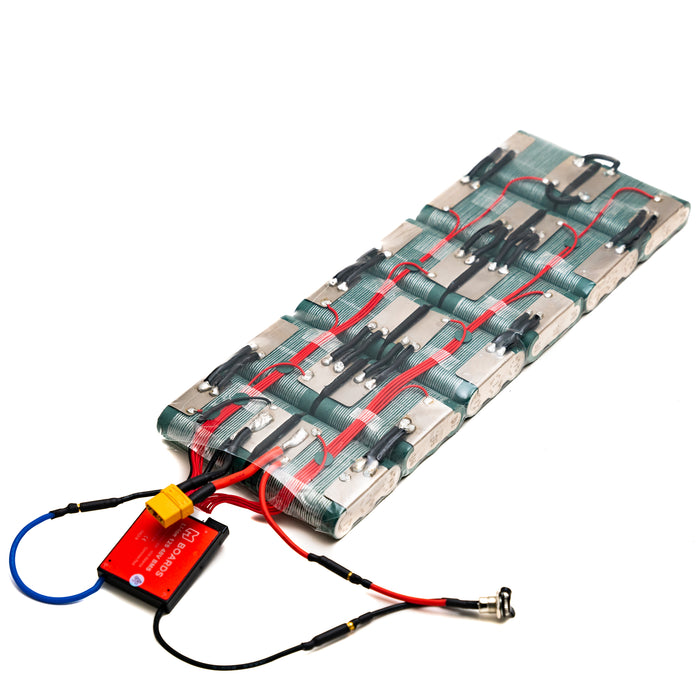

Modular BMS
Unlike our old batteries, our Transparent Series features an external and modular BMS. That means if your BMS ever has an issue, you can simply unplug it and plug in a new one. No need to rip the pack apart and cut a bunch of wires. Replace the BMS with ease. No soldering, no hassle.
Truly Unlocked
The MBoards Transparent Series batteries are all BMS bypassed for discharged. That means you have access to the full potential of the battery cells with out the bottleneck of a BMS.
What's Included?
- 1 x MBoards 12s3p P42A Complete Battery Solution
- 1 x Modular BMS (Battery Management System)
- 1 x 2.1mm Charge Port
- 1 x 50.4V Charger
Battery Info:
Range: 25-30+ Miles (40-48+ Km)
Top Speed: 30+Mph (48+ Kmh)
Nominal Voltage: 43.2V
Capacity: 12600mAh | 544.3Wh
Cells: Molicel P42A 21700

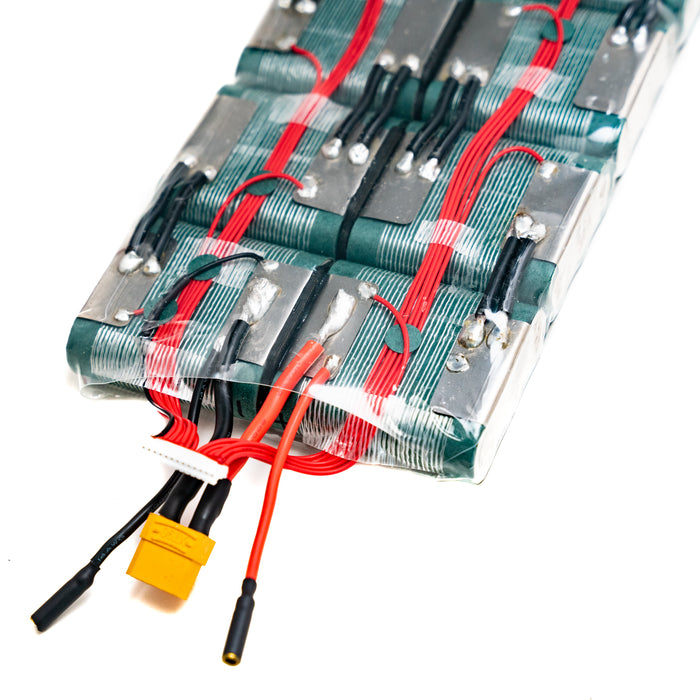

Connection: XT90 Female connector
Max Discharge: 135a
Approximate Battery Dimensions:
Length: 15.75" (400mm)
Width: 5.7" (146mm)
Thick: 1" (25.4mm)
*BMS is not counted in approximate dimensions, as many builders stack the BMS on-top of the ESC to save space.
Everything is plug and play, no soldering required. A 12s charger is also included with your purchase of the battery. The charger is formatted for North America (USA & Canada) but will also work with other countries with a power adaptor (not included).
