Bluetooth Module Compatible with BLDC ESC V4 & V6
$24.99
SKU W-C-9-D-1
⬇︎ Full List of Specs and Features Below ⬇︎

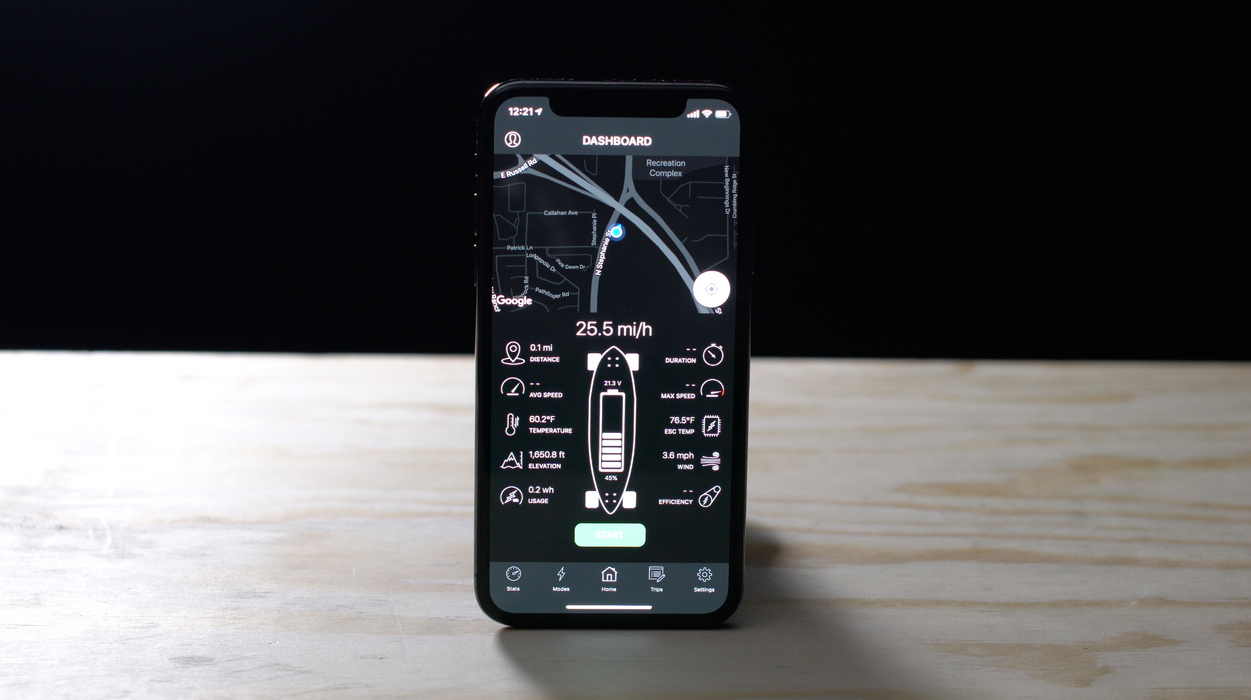

Finally a solid App for DIY Electric Skateboards. Log rides, create different ride modes, track your miles, monitor battery voltage, ESC temperature, elevation, and speed.
Compatible with VESC® based ESC Hardware 4 & 6.

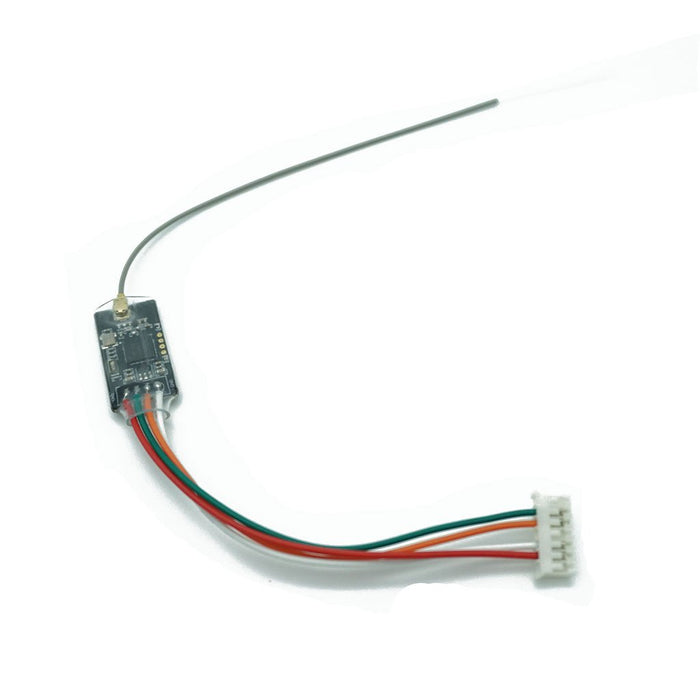

Specs:
Operating voltage: 2.0V ~ 12V Onboard Chip: NRF51822
Actual use distance: The distance to communicate with VESC is about 15 meters
Frequency range: 2.4GHz
2.4 GHz multi-protocol RF receiver
ARM® Cortex
-M0 32 bit processor
256kB flash & 16kB RAM
PCB size：27mm*13mm
2.0mm seven-pin four-wire connector length：90mm
Antenna length：145mm
net weight：3.5g
